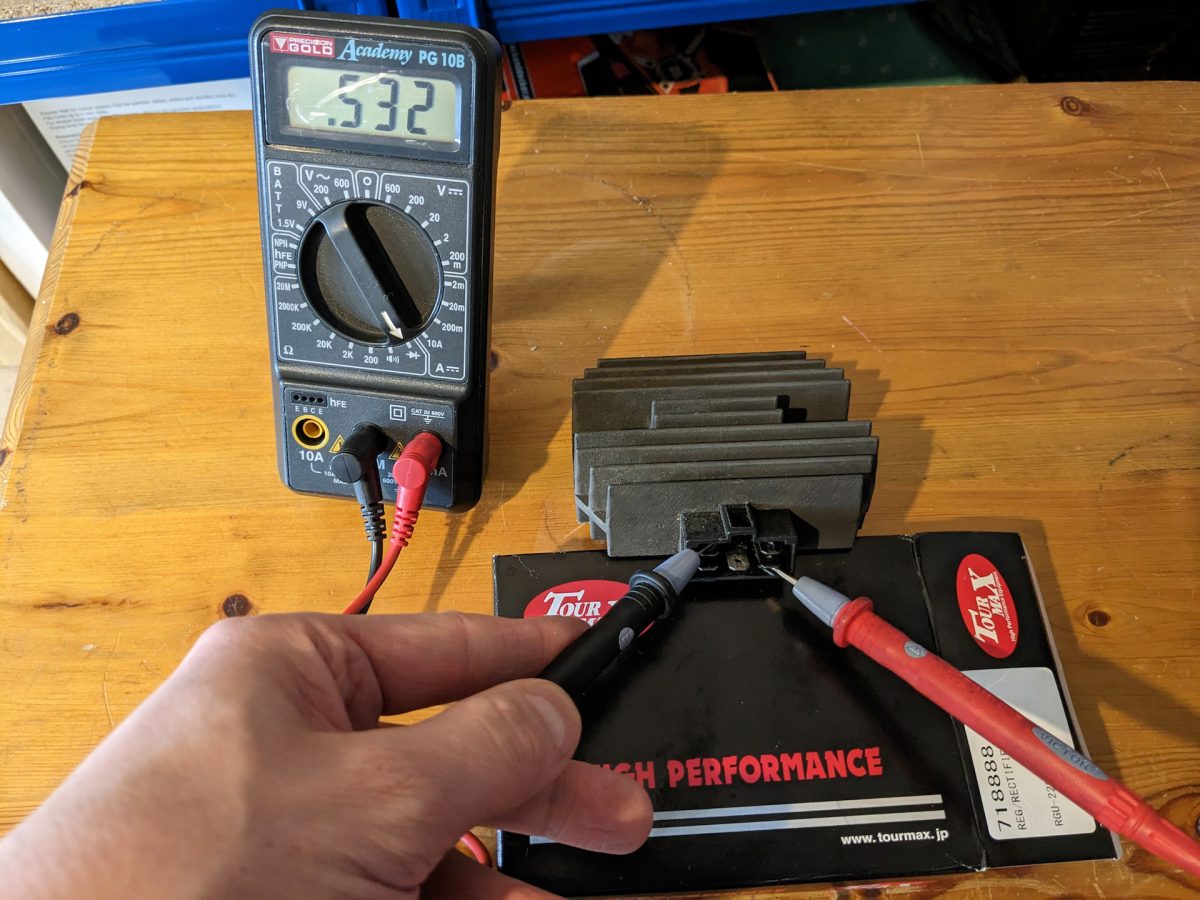

How to check a rectifier. To test a regulator rectifier, you'll need a digital multimeter with diode testing capabilities. Intro how to test a bridge rectifier and diodes the easy way using a multimeter pizzey technology 4.08k subscribers subscribe subscribed 466 77k views 3 years ago gce a level. This bridge rectifier calculator can assist you in understanding how a bridge rectifier circuit works and how to use one.
How to test a rectifier with a multimeter step 1: About press copyright contact us creators advertise developers terms privacy policy & safety how youtube works test new features nfl sunday ticket. To troubleshoot a bridge rectifier, follow these steps:
Connect the red positive test lead to the anode of the schottky. Disconnect the leads and turn off the multimeter. To check if a rectifier is faulty, use a multimeter in diode test mode.
A rectifier to test; First check for broken wire between the diode terminals and the. Simply defined, rectification is the conversion of alternating current (ac) to direct current (dc).
Do the same process between the negative output and the ac inputs. For the last step, check whether the bridge rectifier is. Watch the video above or read on below to see how to test a regulator rectifier.
0:00 / 12:45 testing a rectifier dangar marine 240k subscribers subscribe subscribed 1.2k 148k views 5 years ago this video is on the techniques for testing a. What is a three phase full wave diode rectifier? Troubleshooting of the bridge rectifier.
Bridge rectifiers convert the ac (alternating. The dc current is given as: Begin by turning off the power and locating the anode and cathode terminals on the rectifier.
A rectifier diode is designed to allow electric current to flow in one direction. Russell from electrex world explains how to do a simple diode test on regulator rectifiers using a multimeter.also have a look at our latest 'how to.' vide. Each of its diodes needs to be tested to make.
Set your digital multimeter to the diode measurement setting. You will find the cathode closer than the anode to the painted line that encompasses the diode. As we start to disassemble the alternator, we find the diode rectifier (or rectifier bridge), the voltage regulator, slip rings and brushes.
